تیوب فین‌دار (Fin Tube)

A Fin Tube is a tube with external fins, grooves or an enhanced surface that increases effective heat-transfer area. Finned tubing is used in air-cooled heat exchangers, condensers, economizers, boilers, heaters and process equipment.

What is a Fin Tube?

A plain tube provides approximately the cylindrical inside or outside area for heat transfer. A finned or enhanced tube adds effective surface area, allowing greater heat duty within a shorter length or smaller equipment envelope.

Surface enhancement is especially valuable when one side has a much lower film coefficient than the other, such as process fluid inside a tube and air outside it.

Why are fins used?

• Greater area: effective external area increases without a proportional increase in tube count or length.
• Smaller equipment: the required footprint or row count may be reduced for a given duty.
• Improved gas-side transfer: fins are particularly effective on the air or gas side.
• Economic optimization: proper selection balances equipment cost and fan power.
• Limitation: more fins are not always better; fouling, corrosion, pressure drop and cleaning can offset the thermal gain.

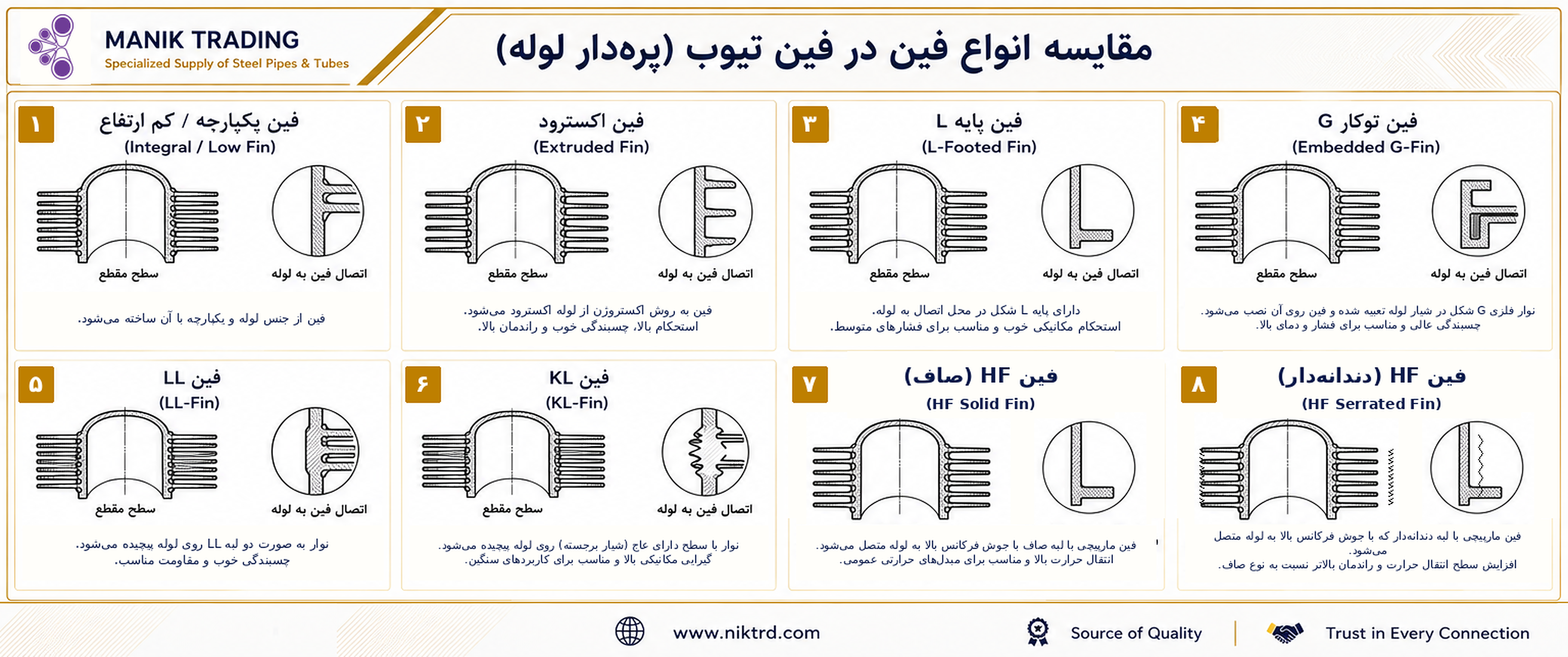

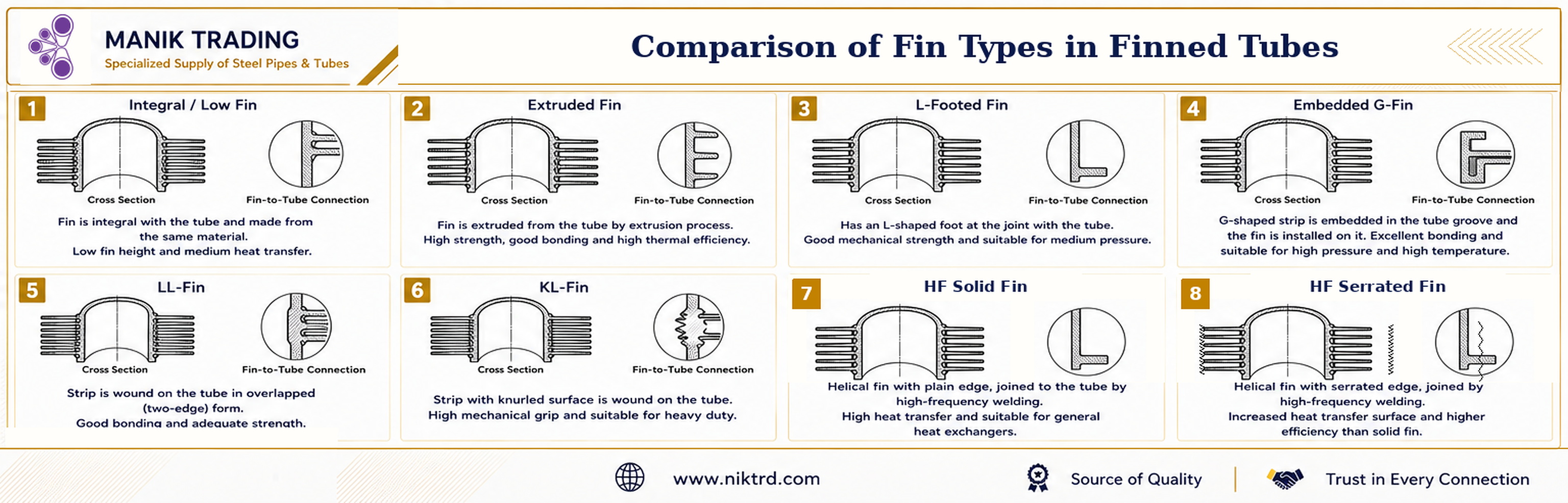

Fin Tube types

Engineering comparison of external fins

Integral fins and Low Fin tubes

An integral fin is formed from the tube material by cold working, so there is no separate fin-to-tube interface. Low Fin tubing typically has short, closely spaced fins and is used in shell-and-tube exchangers, condensers and evaporators.

Fin Tubes in air-cooled heat exchangers

In an air-cooled heat exchanger, process fluid normally flows inside the tube while air flows over the fins. Because the air-side coefficient is lower, external fins increase the effective air-side area.

• Fin spacing must suit dust, moisture, salt and the cleaning method.
• Fin height and thickness affect efficiency, air pressure drop and fan power.
• The attachment must remain stable at operating temperature, under thermal cycling and vibration.
• Very dense fins can block rapidly in dirty environments.
• API 661 governs the air-cooled exchanger; the Fin Tube specification must be read with the project datasheet.

Base-tube and fin materials

Reference standards

The product standard must be read with the base-tube standard, equipment datasheet, fabrication drawing, fin specification and project inspection requirements. The governing edition must match the project documents.

Fin Tube dimensional parameters

Thermal performance and pressure drop

Increasing geometric area does not guarantee proportional duty. Fin efficiency, contact resistance, material conductivity, tip temperature, fouling, bypass flow and pressure drop must be included.

Manufacturing and fin attachment

• Base-tube and fin-strip certificates and traceability form part of product verification.
• Clean the tube surface before finning or welding.
• Strip tension, pitch, height, thickness and helix uniformity are manufacturing control parameters.
• HF weld continuity, burn-through and base-tube undercut are relevant fabrication controls.
• Groove geometry for G fins and contact pressure for L, LL and KL fins are process-control variables.
• Heat treatment or PWHT applies where required by the specification or fabrication procedure.
• Protect fins during handling, packing and storage.

Failure mechanisms

Inspection and testing

• Measure base-tube diameter, root diameter, tip diameter, height, thickness and fin pitch.
• Finned length, bare ends, straightness and twist are dimensional inspection items.
• Inspect fin continuity, fractures, crushing and weld defects.
• Perform pull or peel tests where specified.
• Test the base tube by hydrostatic, pneumatic or permitted NDE methods.
• Perform PMI on alloy materials and bimetallic combinations.
• Separators and suitable packing reduce the risk of fin deformation during handling and shipment.

Technical parameters

Fin-tube technical parameters

Fin Tube FAQ
